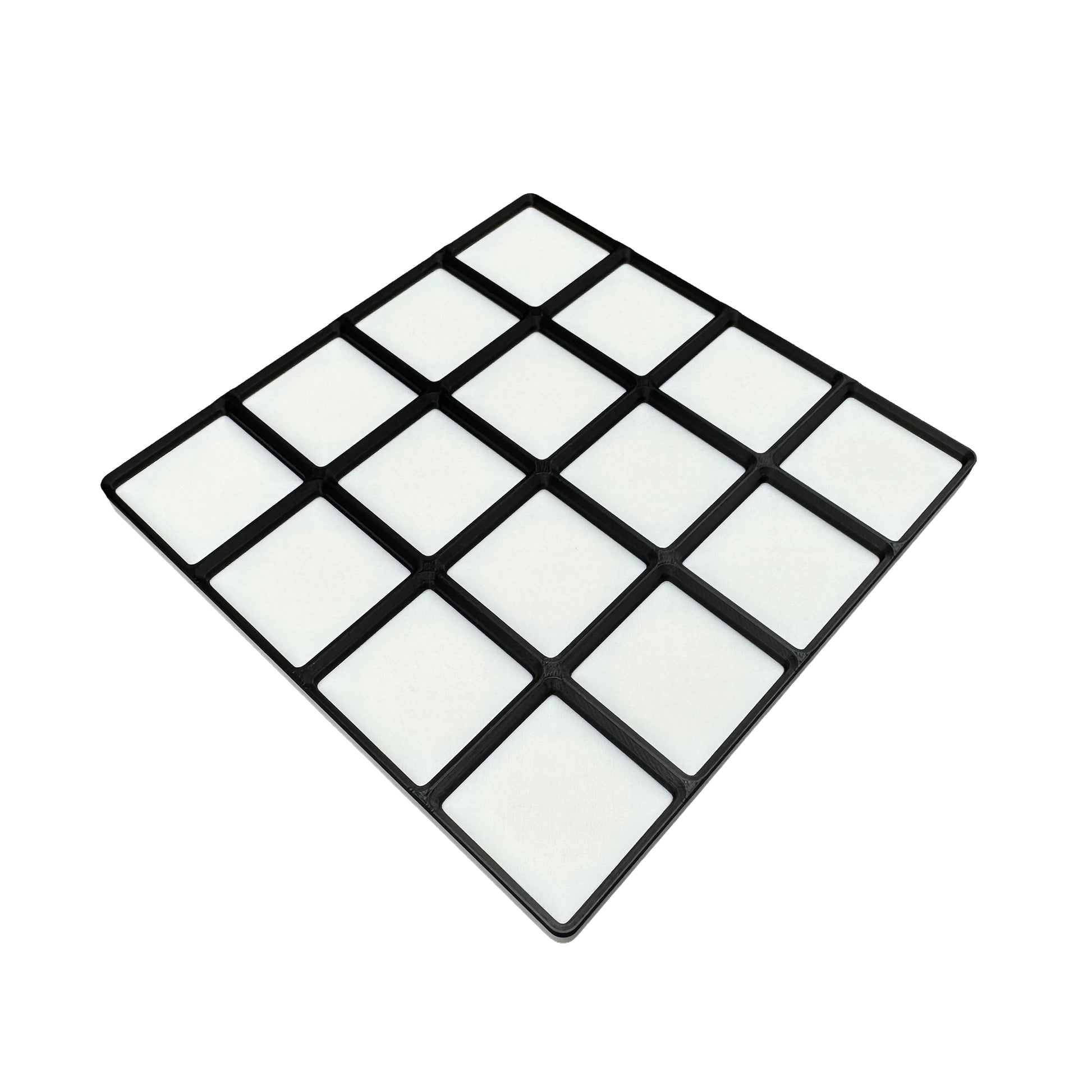

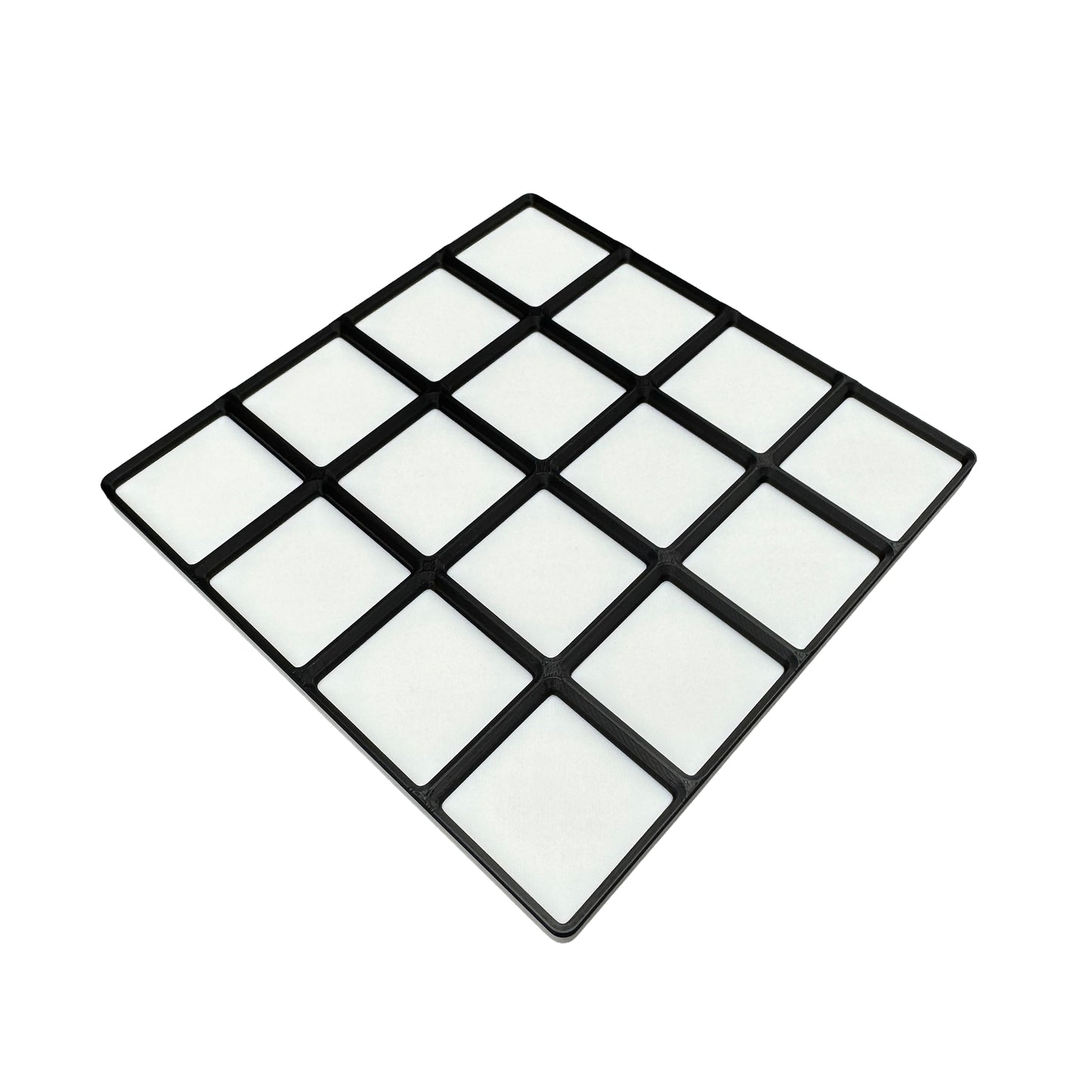

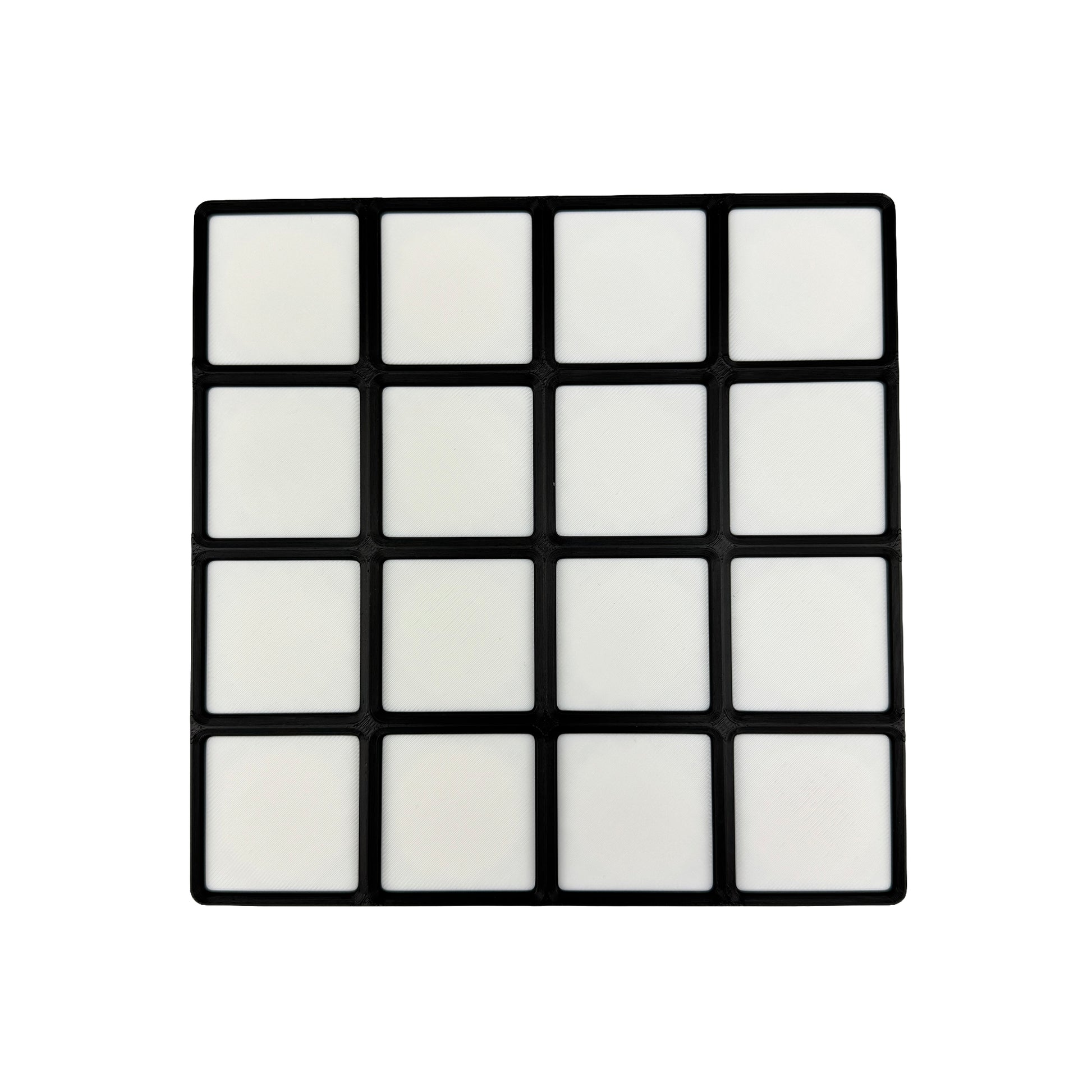

GridLock Magnetic Baseplate - Gridfinity

Choose your perfect finish for a custom look!

We offer two great options to match your workbench style:

• Solid Color — A clean, single-filament print in one smooth shade. Ideal for a sleek, uniform appearance.
• Two-Tone — Base color with contrasting trim accents for enhanced visibility, depth, and pop. Great for color-coding sections or adding flair (upcharge applies).

Available Colors (high-quality Bambu Lab PLA Basic filament):
Jade White, Beige, Light Gray, Silver, Gray, Magenta, Pink, Hot Pink, Orange, Pumpkin Orange, Gold, Sunflower Yellow, Yellow, Bright Green, Bambu Green, Mistletoe Green, Bronze, Cocoa Brown, Brown, Maroon Red, Red, Turquoise, Cyan, Blue, Cobalt Blue, Purple, Indigo Purple, Blue Gray, Dark Gray, Black.

All prints use premium Bambu Lab PLA Basic for durability, smooth finishes, and reliable layer adhesion. Colors are vibrant and consistent across prints.

Quick Notes:

• Color availability depends on current stock and demand. Bambu Lab offers up to 30 shades, but not every color is always in stock.
• Pick your base and trim colors in the dropdowns, then use the 3D model viewer to test combos! (This is only a visual aid — it doesn't show layer lines or true colors. See the real sample print photos in the product images for accurate color reference.)
• Pro tip: Two-Tone really makes Gridfinity organizers stand out on a busy bench and is perfect for highlighting sections in your setup!

Grid Size:

2×2, 2×3, 2×4, 2×5, 2×6, 2×7, 3×3, 3×4, 3×5, 3×6, 3×7, 4×4, 4×5, 4×6, 4×7, 5×5, 5×6, 5×7, 6×6, 6×7, 7×7

External Dimensions:

(Width × Depth × Height)
2×2 - 83.5 mm × 83.5 mm × 11 mm (3.29 in × 3.29 in × 0.43 in)
2×3 - 83.5 mm × 125.5 mm × 11 mm (3.29 in × 4.94 in × 0.43 in)
2×4 - 83.5 mm × 167.5 mm × 11 mm (3.29 in × 6.59 in × 0.43 in)
2×5 - 83.5 mm × 209.5 mm × 11 mm (3.29 in × 8.25 in × 0.43 in)
2×6 - 83.5 mm × 251.5 mm × 11 mm (3.29 in × 9.90 in × 0.43 in)
2×7 - 83.5 mm × 293.5 mm × 11 mm (3.29 in × 11.56 in × 0.43 in)
3×3 - 125.5 mm × 125.5 mm × 11 mm (4.94 in × 4.94 in × 0.43 in)
3×4 - 125.5 mm × 167.5 mm × 11 mm (4.94 in × 6.59 in × 0.43 in)
3×5 - 125.5 mm × 209.5 mm × 11 mm (4.94 in × 8.25 in × 0.43 in)
3×6 - 125.5 mm × 251.5 mm × 11 mm (4.94 in × 9.90 in × 0.43 in)
3×7 - 125.5 mm × 293.5 mm × 11 mm (4.94 in × 11.56 in × 0.43 in)
4×4 - 167.5 mm × 167.5 mm × 11 mm (6.59 in × 6.59 in × 0.43 in)
4×5 - 167.5 mm × 209.5 mm × 11 mm (6.59 in × 8.25 in × 0.43 in)
4×6 - 167.5 mm × 251.5 mm × 11 mm (6.59 in × 9.90 in × 0.43 in)
4×7 - 167.5 mm × 293.5 mm × 11 mm (6.59 in × 11.56 in × 0.43 in)
5×5 - 209.5 mm × 209.5 mm × 11 mm (8.25 in × 8.25 in × 0.43 in)
5×6 - 209.5 mm × 251.5 mm × 11 mm (8.25 in × 9.90 in × 0.43 in)
5×7 - 209.5 mm × 293.5 mm × 11 mm (8.25 in × 11.56 in × 0.43 in)
6×6 - 251.5 mm × 251.5 mm × 11 mm (9.90 in × 9.90 in × 0.43 in)
6×7 - 251.5 mm × 293.5 mm × 11 mm (9.90 in × 11.56 in × 0.43 in)

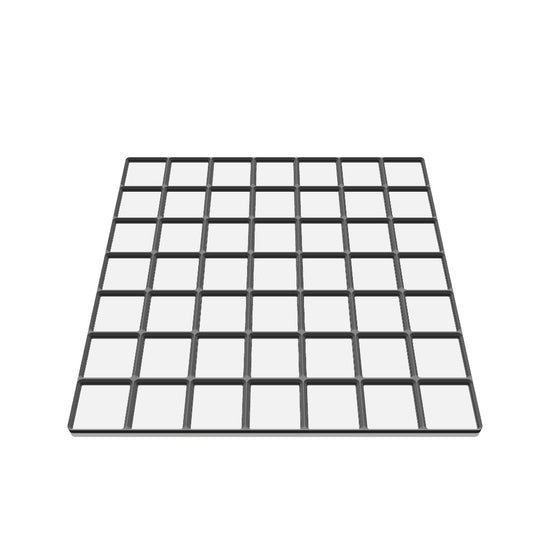

7×7 - 293.5 mm × 293.5 mm × 11 mm (11.56 in × 11.56 in × 0.43 in)

Weight:

2×2 - 33 g (0.07 lbs)
2×3 - 49 g (0.11 lbs)
2×4 - 66 g (0.15 lbs)
2×5 - 82 g (0.18 lbs)
2×6 - 98 g (0.22 lbs)
2×7 - 115 g (0.25 lbs)
3×3 - 74 g (0.16 lbs)
3×4 - 98 g (0.22 lbs)
3×5 - 123 g (0.27 lbs)
3×6 - 147 g (0.32 lbs)
3×7 - 172 g (0.38 lbs)
4×4 - 262 g (0.58 lbs)
4×5 - 328 g (0.72 lbs)
4×6 - 393 g (0.87 lbs)
4×7 - 459 g (1.01 lbs)
5×5 - 410 g (0.90 lbs)
5×6 - 492 g (1.08 lbs)
5×7 - 574 g (1.27 lbs)
6×6 - 590 g (1.30 lbs)
6×7 - 689 g (1.52 lbs)
7×7 - 803 g (1.77 lbs)

Material: Bambu Lab PLA Basic

# of GridLock Magnets: 1

2×2 - 4 magnets
2×3 - 6 magnets
2×4 - 8 magnets
2×5 - 10 magnets
2×6 - 12 magnets
2×7 - 14 magnets
3×3 - 9 magnets
3×4 - 12 magnets
3×5 - 15 magnets
3×6 - 18 magnets
3×7 - 21 magnets
4×4 - 16 magnets
4×5 - 20 magnets
4×6 - 24 magnets
4×7 - 28 magnets
5×5 - 25 magnets
5×6 - 30 magnets
5×7 - 35 magnets
6×6 - 36 magnets
6×7 - 42 magnets
7×7 - 49 magnets

Want to print this yourself?

Have your own 3D printer? Join our Patreon ($5/month tier) for instant access to many of our workbench and game room organizers, display stands, holders, and other designs with unlimited personal and small-scale commercial use while subscribed.

• High-quality STL files
• 2-3 new designs added monthly for workbench, gameroom, and retro storage setups

Quick note on GridLock:
The GridLock Magnetic Baseplate (and any GridLock-compatible designs with the hidden 30mm × 2mm magnet recesses) aren't available as digital files on Patreon just yet. Magnet sizes can vary slightly from one supplier to another, which directly impacts the drop-in fit and long-term stability. We're taking our time to source a consistent, reliable option so the files we release work perfectly right out of the slicer. We don't want anyone wasting filament or time on a print that doesn't accept the magnets as intended. As soon as we nail down the right source, these will be uploaded and ready for you!
